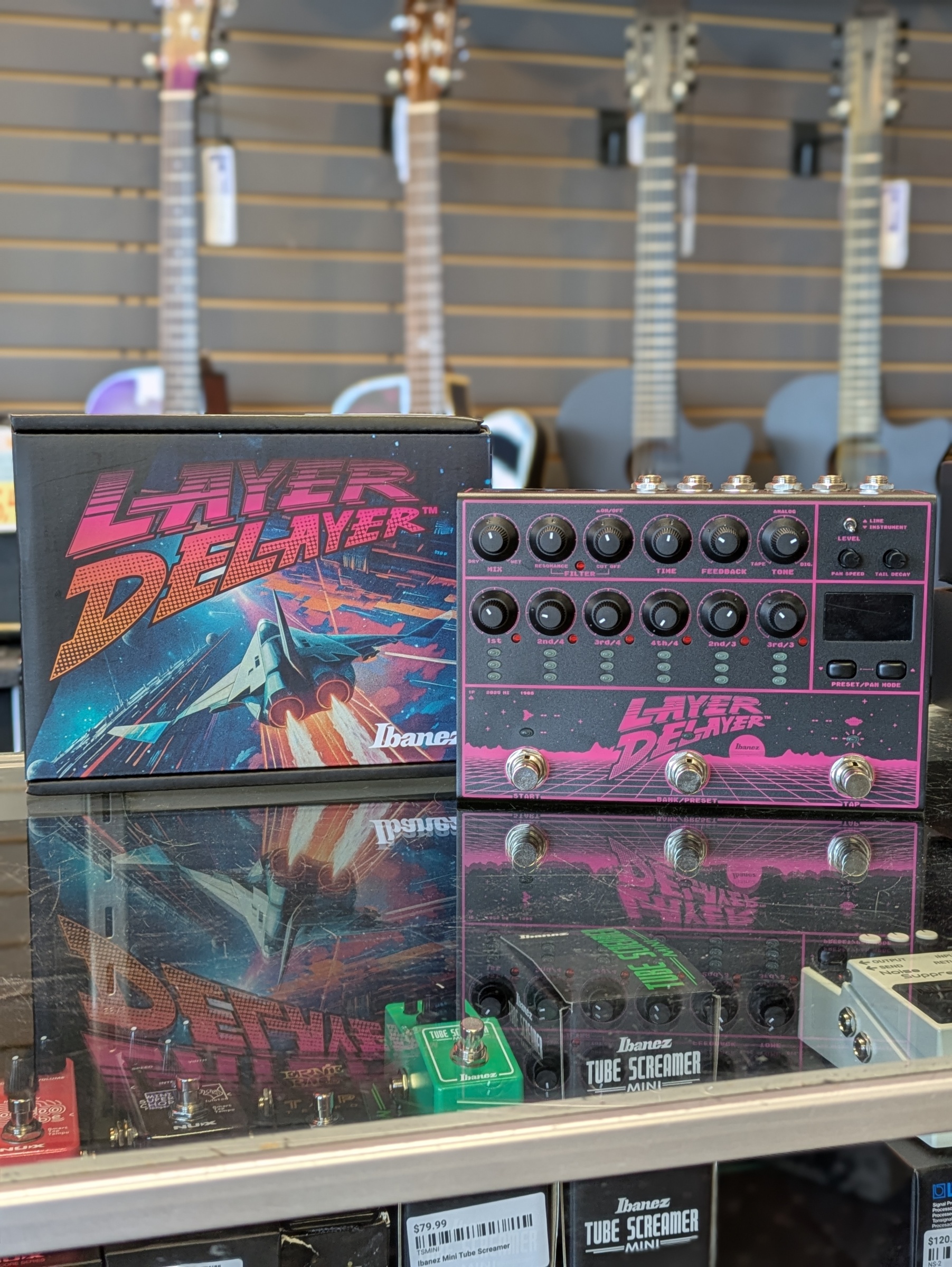

Ibanez LD303 Layer Delayer Multi-Head Delay Effects Pedal
|
|
|
|
Ibanez LD303 Layer Delayer Multi-Head Delay Effects Pedal
A rhythmically inventive stereo delay pedal with independent volume control over 16th-note and triplet repeats, three delay modes from tape to digital, a simulated ladder filter, 8 auto-panning modes, stereo I/O, MIDI, FX loop, and 50 preset slots — a genuine delay workstation in a single stompbox.
Who This Pedal Is For
The Ibanez LD303 Layer Delayer is not a delay pedal that tries to be everything to everyone by adding more delay types. Its innovation is structural: rather than simply offering longer tails or more character options, it gives you direct, independent control over the volume of each rhythmic subdivision within the delay pattern. Set your delay time to a quarter note and the LD303 simultaneously generates the corresponding 16th notes and triplets — each with their own level control. The result is rhythmic interplay between repeat layers that feels compositional rather than mechanical. Layer that with three delay modes spanning tape warmth to digital precision, a resonant ladder-style filter that sculpts the character of the repeats from dark and woolly to edgy and present, an FX loop that routes only the wet delay signal through external gear, and 8 auto-panning modes for stereo movement — and this is a serious creative instrument, not just a utility device. It suits guitarists who build soundscapes, players who want rhythmic complexity without a looper, producers running pedals into a DAW, keyboardists who think spatially, and anyone who has maxed out what a single-repeat delay can do and wants more control over the architecture of the echo itself.
Key Highlights
- Independent volume control for quarter-note, 16th-note, and triplet delay signals — create rhythmic patterns impossible on a standard delay
- Three delay mode transitions: Tape, Analog, and Digital with stepless tonal sweeping between them via the Tone knob
- Simulated low-pass ladder filter with Cutoff and Resonance controls — shapes repeats from warm and lo-fi to synth-like with pronounced resonance
- Variable Tail Decay: true bypass at 0, sustaining trails at high settings — smooth bypass transitions under full control
- 8 auto-panning modes (left-to-right, right-to-left, ping-pong, and more) with wide and narrow sweep width options and adjustable speed
- Delay time range: 40ms – 1500ms, or BPM mode: 40 – 1500 BPM
- Tap tempo footswitch for live beat-locked delay setting
- Stereo input and output — fully stereo signal chain from input to output
- FX loop on the delay signal path only — route the wet repeats through external effects without affecting the dry signal
- MIDI input and through — control nearly all parameters from an external MIDI controller or sequencer
- Level mini-switch: selectable Line or Instrument level for clean headroom management across different signal chain contexts
- 20 factory presets across 50 total preset slots in 5 banks
- USB-C port for firmware updates and Layer Delayer app connectivity (iOS and PC)
- Layer Delayer app enables full parameter control, preset import/export, and global settings editing
- Requires external 9V DC center-negative adapter at 300mA — power supply not included
Rhythmic Architecture
The core concept of the LD303 is the ability to treat each subdivision of the delay pattern as an individual voice with its own level. Bring up the triplet layer and pull the 16th notes back, or do the opposite, and the delay becomes a rhythmic composition tool rather than a simple repeat effect. Players who work with odd time signatures, layered ambient textures, or locked-to-tempo delay patterns will find creative territory here that a standard delay pedal simply cannot access.
The Ladder Filter
The simulated low-pass ladder filter on the LD303 is borrowed from synthesizer design — it is the same resonant filter architecture found in classic analog synths, applied to the delay signal. Running the Resonance up introduces a pronounced, almost vocal quality to the filtered repeats. At lower settings it behaves like a traditional low-pass roll-off, warming the echoes and pushing them back in the mix. The filter operates exclusively on the wet signal, leaving the dry tone untouched.
The FX Loop Advantage
The LD303's effects loop is inserted only into the delay signal path — not the full signal chain. That means any pedal placed in the loop processes only the repeats, not the original dry tone. Running the delay through an overdrive clips the echoes while leaving your clean playing intact. Running it through a reverb wets only the tails. This is a fundamentally different routing capability than a standard send/return loop on a mixer, and it opens up stacking possibilities that most delay pedals cannot access.
Great Fit For
- Guitarists building ambient, shoegaze, or post-rock soundscapes who need precise control over spatial and rhythmic depth
- Players who use delay as a rhythmic composition tool rather than simply as echo
- Keyboardists and synthesizer players who need line-level input compatibility and MIDI integration in a pedalboard format
- Producers recording pedal-into-DAW signal chains who want stereo delay with deep preset management and USB connectivity
- Live performers who need tap tempo, MIDI-syncable delay, and preset recall in a single pedal
- Pedalboard builders running complex wet/dry or stereo rigs who need a delay with proper stereo I/O and an independent FX loop
- Players stepping up from a single-mode delay pedal who want considerably more control over the character and architecture of their repeats
Sound and Use
The three delay modes on the LD303 are not discrete switch positions — the Tone knob sweeps continuously between Tape at one end and Digital at the other, with Analog sitting in the middle of the range. This means the transitions between character types are gradual and musical rather than abrupt, and the space between modes often yields the most interesting textures. The Tape end brings a softer, warmer repeat character with natural high-frequency roll-off on each echo. The Digital end delivers bright, faithful repeats with minimal tone change from dry to wet. The Analog position sits somewhere between — slightly colored, slightly softened, without the compression artifacts of true tape. Running the filter over any of these modes reshapes the repeat character dramatically — a digital delay through high resonance on the filter produces something that sounds nothing like either a digital or a tape echo, and that is where the LD303 starts to sound genuinely unlike other delay pedals. The Level switch for Line or Instrument level is a practical detail that matters for players routing into mixers, audio interfaces, or synthesizer signal chains where instrument-level headroom would create distortion.
Specifications
The players who end up loving the Layer Delayer are usually the ones who have been stretching what their current delay can do for a while — using multiple pedals to get rhythmic complexity, wishing the wet signal had its own FX chain, or wanting more spatial control than a standard ping-pong mode offers. If that sounds familiar, the LD303 is worth a serious look. It is genuinely different in the way it thinks about delay, and that difference shows up immediately when you start adjusting those individual repeat levels.
If you want to talk through how it fits into your current pedalboard, how the FX loop works with a specific pedal you already own, or anything else on your mind — we are always happy to dig into that conversation with you.
Call or text us at 814-371-5666 — Spotts Music Center, Dubois, PA. Helping you make music.
