A full ocean of delay + reverb tones in one gig-ready pedal

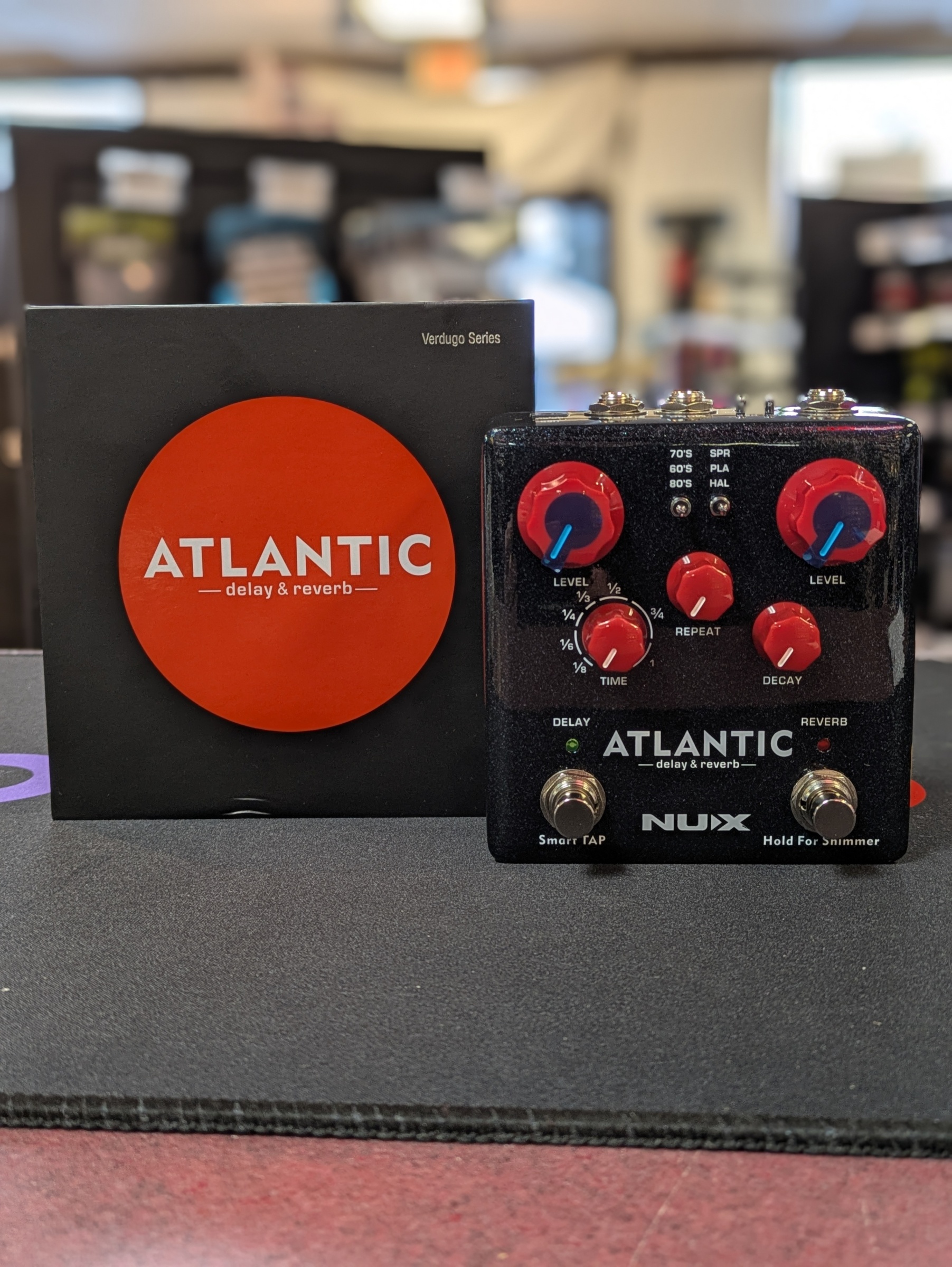

The NUX Atlantic NDR-5 is made for players who want inspiring ambient textures and tight rhythmic repeats without building a huge board. You get three classic delay eras, three go-to reverbs, and modern extras like Shimmer, all wrapped in a layout that is easy to dial in quickly on stage. Whether you need slapback and spring for rootsy parts, big hall washes for worship, or crisp 80s repeats for leads, Atlantic delivers the sounds you actually reach for - fast.
Features
- 3 delay engines: 60s Tape (55ms to 550ms), 70s Analog/BBD-style (40ms to 400ms), and 80s Digital (80ms to 800ms).
- 3 reverb engines: Spring, Plate, and Hall for everything from vintage drip to wide modern ambience.
- Plate Shimmer on-demand: Hold the Reverb footswitch in Plate mode to bring in a shimmering, dreamy lift that fades when released.
- NUX Smart Tap Tempo: Tap anytime to set tempo (125ms to 1500ms) with subdivision choices (1/8, 1/6, 1/4, 1/3, 1/2, 3/4, 1) for musical patterns and fast slapback style timing.
- Inside routing control: Run delay and reverb in parallel or serial, and choose which effect comes first in serial mode.
- Flexible I/O: TRS input supports insert (send/return) use with a Y or insert cable, plus stereo outputs for a wider, more dimensional sound.
- USB firmware updates: Micro USB port keeps the pedal current and consistent.
Advantages
- Two essentials, one footprint: Save space and simplify your rig while keeping pro-level ambience on tap.
- Dial it in quickly: Dedicated Level/Time/Repeat for delay and Level/Decay for reverb make it easy to land the sound you want.
- Build bigger sounds without extra pedals: Stereo outs, routing options, and Shimmer let you go from subtle polish to cinematic washes instantly.
Benefits
- Play with more feel: The right delay division locks you to the groove, while reverb adds space that makes parts feel finished.
- Sound larger on stage: Stereo ambience and smart routing help your guitar sit wide and clear in a mix.
- Create more inspiring parts: From warm tape trails to shimmer lift-offs, Atlantic helps you write and perform with confidence.
Specifications
- Effects: Delay (60s Tape, 70s Analog, 80s Digital) and Reverb (Spring, Plate, Hall) with Plate Shimmer (hold switch)
- Delay time ranges: 70s 40ms to 400ms; 60s 55ms to 550ms; 80s 80ms to 800ms
- Tap Tempo range: 125ms to 1500ms
- Tap subdivisions: 1/8, 1/6, 1/4, 1/3, 1/2, 3/4, 1
- Routing: Parallel or Serial; selectable effect order in Serial mode
- Sampling rate: 44.1 kHz
- A/D converter: 32-bit
- Signal processing: 32-bit
- Frequency response: 20Hz to 20kHz
- Dynamic range: 102 dB
- Input impedance: 1 M ohm
- Output impedance: 1 k ohm
- Input: 1 x 1/4-inch TRS (instrument / insert send-return)
- Outputs: 2 x 1/4-inch (mono/stereo)
- Input level switch: -10 dB / +4 dB headroom adjustment
- USB: Micro USB (firmware updates)
- Power: 9V DC (negative tip)
- Dimensions: 4.13 in x 4.53 in x 2.24 in
- Weight: 0.93 lb
