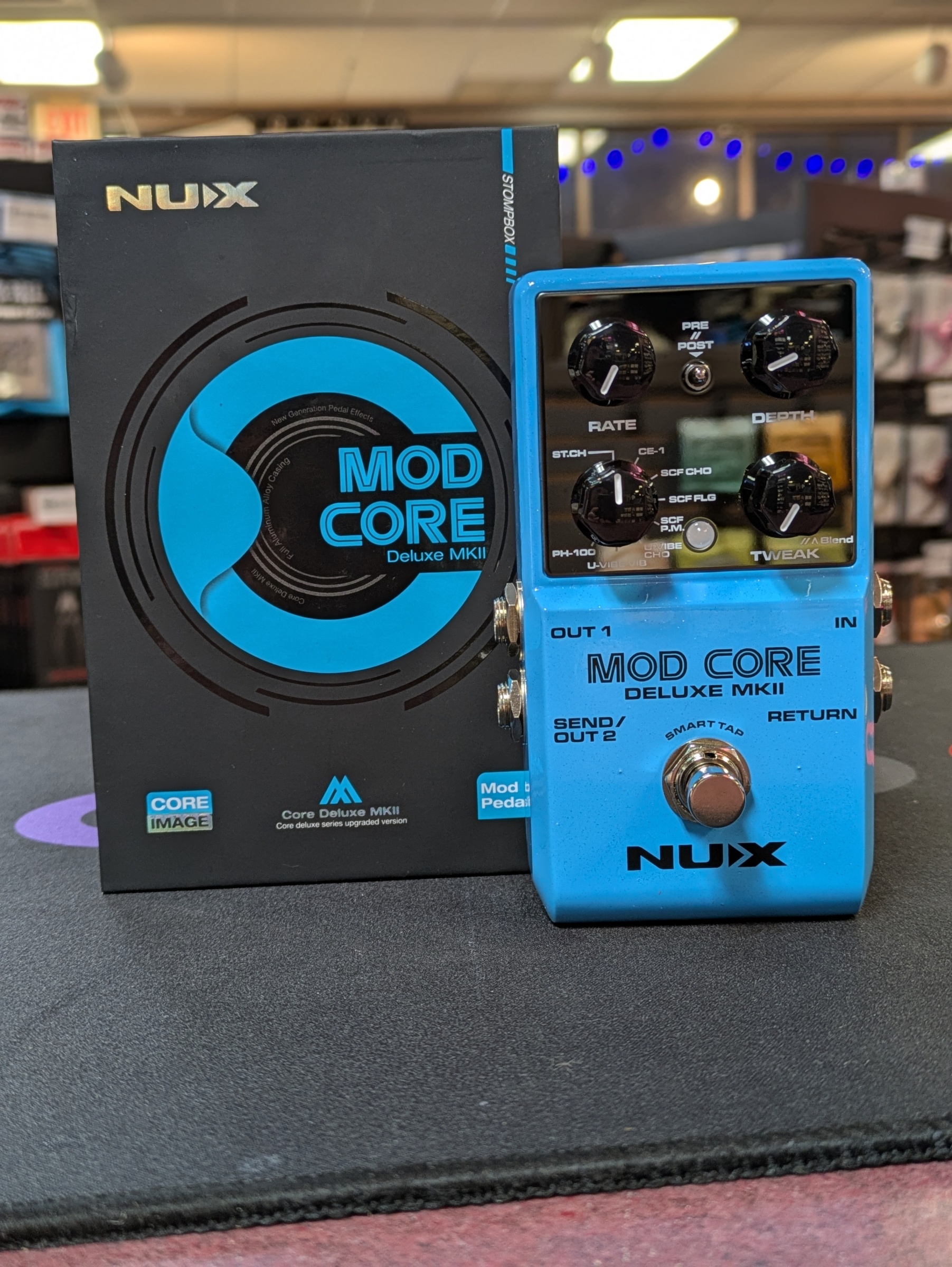

NUX Mod Core Deluxe MKII - One pedal, a full world of modulation
Modulation is the fastest way to make your guitar sound bigger, wider, and more "produced" - but stacking multiple mod pedals eats up space (and time). The NUX Mod Core Deluxe MKII puts eight classic, gig-ready modulation voices in one compact pedal, then adds modern routing options so it can fit into almost any rig: mono, stereo, or advanced setups using its Send/Return loop.
Features
- 8 modulation types: ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB, and PH-100
- Advanced routing with Send/Return loop plus a 3-way toggle for PRE, Parallel, or POST placement
- Parallel routing offers a Blend control (Alt mode: TWEAK becomes Blend)
- Smart Tap Tempo (50 to 200 BPM)
- Analog dry signal path for low noise and zero-latency feel
- USB-C port for firmware updates
- Low current draw (less than 120mA)
Advantages
- Cover more songs with less gear: From wide stereo chorus to chewy vibe and classic phaser movement, you can match the feel of countless records without swapping pedals.
- Build a smarter signal chain: The Send/Return loop and routing switch let you place modulation before, after, or alongside other effects for cleaner, more controllable tones.
- Lock to the groove: Tap in your rate and keep your modulation synced to the song - especially handy for modern worship, pop, and tight rhythmic parts.
- Plays nice in real rigs: Stereo capability and an analog dry path help your core tone stay clear and immediate.
Benefits
- Instantly richer clean tones: Add width, shimmer, and dimension that makes your guitar sound bigger in the room (and in recordings).
- More expressive leads: Subtle movement can make sustained notes feel alive and musical without getting in the way.
- Less tweaking, more playing: Pick a mode, set your depth, tap your tempo, and youre ready to go.
Specifications
- Effect types: 8 (ST.CH, CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB, PH-100)
- Routing: Normal (mono/stereo out) and advanced routing via Send/Return (PRE / Parallel / POST)
- Tap tempo: Smart Tap Tempo, 50 to 200 BPM
- Input impedance: 1M ohm
- Output impedance: 1k ohm
- Dynamic range: 104 dB
- DSP processing: 48kHz / 32-bit
- A/D D/A sampling rate: 48kHz / 24-bit
- Power: 9V DC, center-negative
- Current draw: less than 120mA
- Dimensions (L x W x H): 4.80 in x 2.83 in x 1.85 in
- Weight: approx. 0.60 lb
