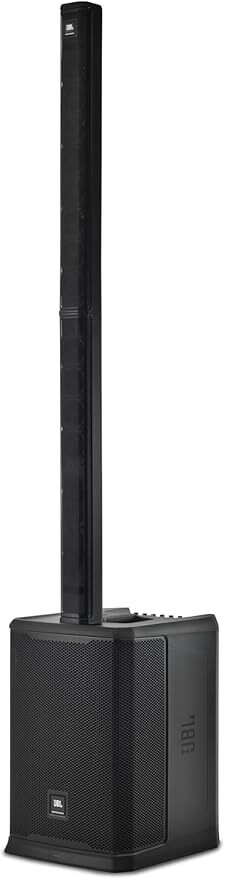

JBL PRX ONE All-In-One Powered Column Array PA System with 7-Channel Mixer and DSP

A complete professional PA system in a single, elegant package — 2,000W peak, 130dB max SPL, 12-tweeter column array with JBL A.I.M. technology, 12" bass-reflex subwoofer, Soundcraft-designed 7-channel digital mixer, Lexicon reverb, dbx DriveRack DSP with AFS Pro feedback suppression, and full Bluetooth 5.0 app control.

About This System

The JBL PRX ONE is built around a fundamental question that gigging musicians, working DJs, event producers, and houses of worship all eventually ask: what if everything I need for a complete, professional PA — the power, the dispersion, the mixer, the effects, the DSP, the app control — came in one package that looks nothing like a pile of gear? The PRX ONE is the answer. Its two-piece column array design places twelve 2.5" custom high-frequency drivers in a vertical array above a 12" bass-reflex subwoofer, with JBL's A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology managing the dispersion pattern across the column. The result is a 130-degree horizontal, 30-degree vertical coverage pattern that delivers consistent, even frequency response from the front of the room to the back — the core acoustic challenge that a traditional point-source speaker mounted on a pole cannot solve without dedicated fill speakers. The integrated 7-channel digital mixer was designed by Soundcraft and includes four XLR/TRS combo inputs with phantom power on two channels, two Hi-Z instrument inputs, a 3.5mm/Bluetooth channel for music playback, a full Lexicon and dbx effects library, dbx DriveRack DSP with AFS Pro Automatic Feedback Suppression, per-channel gates and compressors, an 8-band master EQ, and a system limiter. The full-color LCD on the subwoofer gives on-the-fly control, and the JBL Pro Connect app extends complete control over all functions remotely, including access to exclusive app-only features like delay tap tempo, speaker snapshots, and simultaneous management of up to ten units. Every unit undergoes 100 hours of JBL stress testing before it ships.

Key Highlights

• 2,000W peak fully bridged Class D amplifier with power factor correction and high-linearity inductors — clean, stable power with minimal THD and protection from voltage spikes
• 130dB max SPL — serious output for a column array system at this size and weight
• Frequency response: 35Hz – 20kHz
• 12 x 2.5" custom high-frequency drivers with copper-capped pole pieces for minimized distortion and smooth HF response
• JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology — consistent front-to-back coverage without hot spots or dead zones
• 130° (H) x 30° (V) dispersion pattern — wide audience coverage, controlled vertical throw
• 12" bass-reflex woofer with custom port geometry for accurate, natural low-end response down to 35Hz
• Soundcraft-designed 7-channel digital mixer with dual operating modes: Mix Mode (7 channel faders) and Channel Strip Mode (per-channel EQ, gain, effects sends)
• Full-color LCD display on subwoofer for direct hands-on control without a device
• Lexicon reverb and delay effects — professional-grade reverb from the most trusted name in effects processing
• dbx DriveRack technology built in — AFS Pro Automatic Feedback Suppression, 8-band master EQ, system limiter, per-channel gates and compressors
• One-touch Soundcraft ducking — voice-activated auto-ducking of music channels when a mic signal is detected
• Bluetooth 5.0 — audio playback and full wireless control via the JBL Pro Connect app (iOS and Android)
• JBL Pro Connect app controls all mixer, DSP, and Bluetooth functions; adds exclusive features including speaker snapshots, delay tap tempo, and simultaneous control of up to 10 units
• Success Metering LEDs on each channel for visual gain staging, signal detection, and mute status
• 4 x XLR/1/4" Combo inputs (Neutrik connectors) — 2 with +48V phantom power
• 2 x Hi-Z inputs for direct guitar and bass connection without a DI box
• 1 x 3.5mm/Bluetooth audio input for devices and music playback
• 1 x XLR Pass Thru output — sends full mixed signal (with gain, levels, EQ, and effects) to additional speakers or recorders; supports up to 100ms of time alignment delay
• 2 x USB 2.0 ports — charge devices and power AKG wireless systems (optional JBL adapter cable may be required)
• Instant preset save and recall — lock in settings at rehearsal, recall at the venue instantly
• Optional wall or truss mount bracket — array can be mounted independently of subwoofer for permanent installations
• Computer-modeled ComfortGrip handle and included nylon carrying bag for the array column
• JBL 100-hour stress test on every unit — reliability assurance built into manufacturing
• System weight: 55.65 lbs

Great Fit For

• Solo and duo performers who need a complete, high-quality PA without multiple trips from the car or a dedicated sound engineer
• DJs running weddings, private events, and parties who need powerful, clean output with a low visual footprint
• Corporate event producers and presenters who need reliable speech reinforcement and music playback in a professional-looking form factor
• Houses of worship and community venues looking for a high-quality, easily operated PA that does not require a dedicated audio team
• Mobile entertainers — karaoke hosts, trivia MCs, emcees — who need full PA capability with minimal setup complexity
• Rental companies looking for a reliable, feature-rich all-in-one system that clients of varying technical skill can operate successfully
• Bands and performing groups who want to leave the outboard mixer, effects rack, and feedback suppressor at home

Connectivity at a Glance

Specifications
