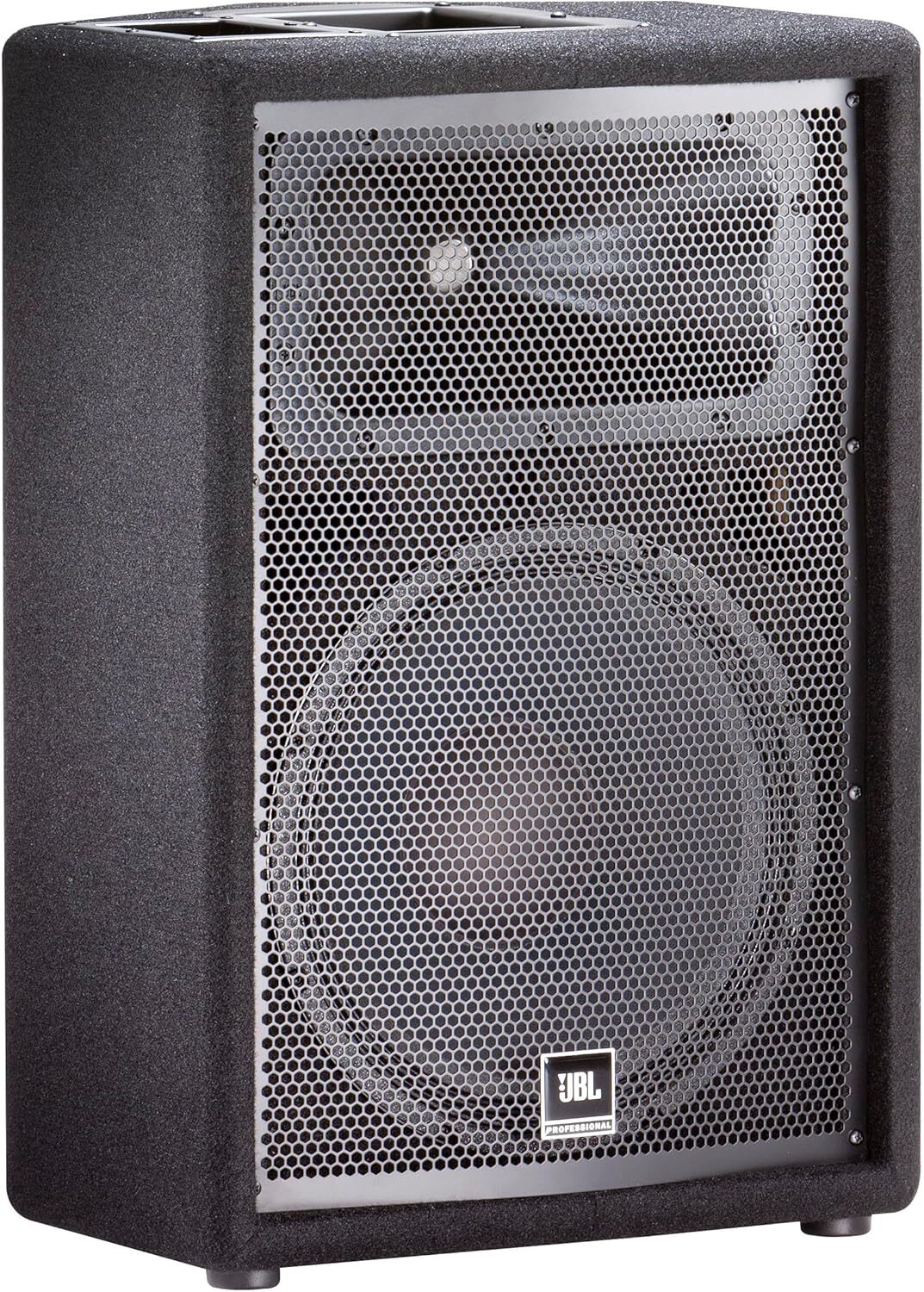

JBL JRX212 12" Two-Way Passive PA Speaker Enclosure

A portable, professional-grade passive 12" two-way loudspeaker from JBL's JRX200 series — built for live stage monitoring and FOH reinforcement with a 64mm edgewound ribbon voice coil woofer, 2414H-C compression driver, Progressive Transition waveguide, SonicGuard protection, and a dual-angle pole-mount socket. 1,000W peak. 129dB max SPL.

About This Speaker

The JBL JRX212 was designed from the ground up with a clear goal: bring professional JBL transducer and acoustic technology to working musicians, sound engineers, and venues who need a rugged, capable passive enclosure without boutique pricing. The result is a 12" two-way speaker that pulls from JBL's professional driver engineering — the 12" woofer uses a 64mm edgewound ribbon voice coil, a construction technique that packs more conductive material into the voice coil gap than conventional round wire designs, improving both efficiency and power handling. The high-frequency section uses the same JBL 2414H-C 1" polymer diaphragm compression driver found in significantly more expensive JBL systems. The Progressive Transition waveguide on the HF driver controls dispersion and reduces distortion across the coverage pattern. The trapezoidal 19mm MDF enclosure allows for tight stage monitor angling when the cabinet is laid flat, and the dual-angle pole-mount socket lets users tilt the speaker 10 degrees forward when pole-mounted for improved audience coverage. SonicGuard protection on the HF driver means aggressive input signals protect the tweeter without interrupting the signal — a meaningful safety net in real-world live applications where gain can get away from anyone. This is a passive enclosure requiring a separate amplifier — recommended power is 250W to 500W into 8 ohms.

Key Highlights

• JBL 12" low-frequency driver with 64mm (2.5") edgewound ribbon voice coil — greater cross-sectional wire area than round wire designs for improved efficiency and power handling
• JBL 2414H-C 1" polymer diaphragm compression driver — the same HF driver used in higher-priced JBL professional systems, optimizing HF performance and system reliability
• Progressive Transition high-frequency waveguide — superior dispersion control, reduced distortion, and smoother frequency response across the coverage pattern
• Advanced network topology crossover — delivers coherent summation in the crossover region with high-voltage capacitors and inductors featuring massive cores and heavy-gauge wire
• SonicGuard HF protection — protects the compression driver from excess power without breaking the signal or interrupting performance
• Dual-angle pole-mount socket — allows the speaker to tilt 10° forward for improved audience coverage when pole-mounted
• Trapezoidal enclosure — functions equally well as a floor monitor or FOH speaker on a pole stand
• 19mm (.75") MDF enclosure with advanced adhesives and mechanical fastener technology — extreme durability and improved low-frequency performance
• 18-gauge hexagon perforated steel grille — rugged protection without compromising acoustic output
• Non-resonant all-steel carry handles
• Power handling: 250W continuous / 500W program / 1,000W peak
• Nominal impedance: 8 ohms
• Recommended amplifier power: 250W to 500W into 8 ohms
• Maximum SPL: 129dB
• Passive enclosure — amplifier sold separately

Great Fit For

• Bands and musicians building a passive PA system paired with a separate power amplifier
• Stage monitor applications where a tilted floor wedge is needed alongside or in place of dedicated monitor cabinets
• Mobile DJ and live entertainment setups requiring reliable, high-output passive enclosures
• Small to medium venues — bars, clubs, community spaces, houses of worship — outfitting a permanent or semi-permanent PA installation
• Live sound engineers assembling versatile speaker systems that work equally well as mains or monitors
• Rental companies stocking rugged, high-efficiency passive cabinets that withstand frequent transport and varied amplifier pairings
• DJs and event producers who already own a capable power amplifier and want a proven JBL passive cabinet to pair with it

Sound and Use

The JRX212 is a working speaker — designed to be driven hard, moved regularly, and set up in a wide range of room environments without requiring acoustic babysitting. The 90° x 50° nominal dispersion pattern provides wide horizontal coverage appropriate for FOH work in small to medium-sized rooms, while the controlled vertical pattern keeps energy in the listening plane rather than bouncing off the ceiling. The crossover at 1.8kHz hands off cleanly from the 12" woofer to the 2414H-C compression driver, with the coherent summation design of the crossover network ensuring that the transition region sounds continuous rather than exhibiting the phase artifacts and coloration that cheaper crossovers introduce. For stage monitoring, the smooth response and good gain-before-feedback performance make it a capable wedge for a vocalist or instrumentalist who needs a clear reference on a busy stage. Recommended amplifier power runs from 250W to 500W into 8 ohms — a well-matched amplifier in that range will drive the JRX212 to its full 129dB peak SPL capability without running into thermal or mechanical limits.

Specifications
