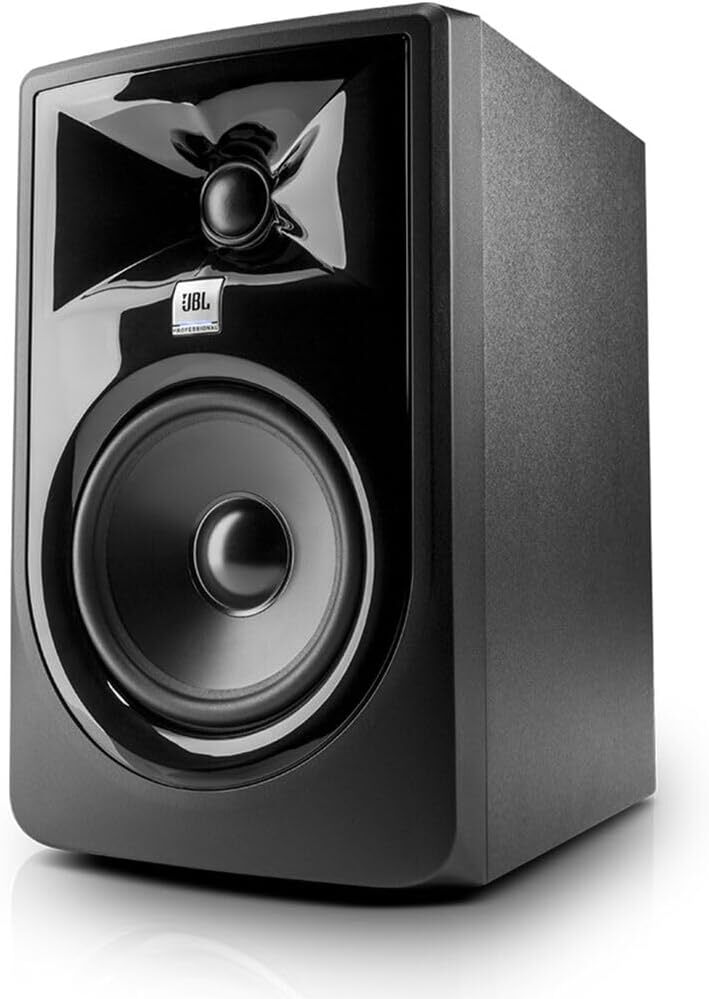

JBL 305P MkII Powered 5" Two-Way Studio Monitor

82W of bi-amplified Class D power, a patented Image Control Waveguide borrowed from JBL's flagship M2 Master Reference Monitor, a Slip Stream low-frequency port, Boundary EQ, and a 3-position HF Trim — professional monitoring technology in a compact, accessible package. Priced and sold per monitor.

About This Monitor

The JBL 305P MkII is the most recognized entry point in professional studio monitoring — not because it cuts corners in an affordable direction, but because JBL managed to bring genuinely professional transducer and waveguide technology into a format that home studios, project rooms, and working producers can afford. The core technologies in the 305P MkII originate from JBL's 7 Series and the M2 Master Reference Monitor — two products that define professional studio monitoring at the highest level. The Image Control Waveguide, the Slip Stream port, and the independently driven Class D amplifiers for each transducer are not simplified versions of those technologies. They are the same engineering principles applied at a 5" monitor price point. The result is a studio monitor that produces a wide, stable sweet spot that does not collapse the moment you move off-axis, a bass response that holds its character accurately at low playback volumes, and a peak SPL of 108dB that gives any nearfield application genuine headroom. The Boundary EQ and 3-position HF Trim allow meaningful acoustic adjustment to room placement and personal preference. This listing is priced per monitor — most users purchase a matched pair.

Key Highlights

• Patented JBL Image Control Waveguide — derived from the M2 Master Reference Monitor, produces a wide, room-friendly sweet spot and precise, detailed stereo imaging even off-axis
• 5" long-throw woofer with enhanced low-frequency linearity and lower harmonic distortion compared to the MkI generation
• 1" woven-composite neodymium tweeter with fine-tuned ferrofluid damping for faster, more accurate HF transient response
• Patented Slip Stream double-flared low-frequency port — maintains accurate bass response at low and high playback levels without turbulence distortion
• Dual 41W Class D amplifiers (82W total) — one dedicated amplifier per transducer with an active crossover, custom designed by JBL
• Peak SPL: 108dB — substantial headroom for a nearfield 5" monitor
• Frequency response: 49Hz – 20kHz (+/-3dB)
• Boundary EQ: 3-position switch (-2dB shelf at 250Hz, -4dB at 100Hz, or flat) — compensates for low-frequency buildup when positioned on a desk or near a wall
• HF Trim: 3-position switch (-2dB, 0, +2dB) — allows high-frequency response tailoring to room acoustics or personal listening preference
• Balanced XLR and balanced 1/4" TRS inputs — accepts pro and consumer signal sources
• Input sensitivity switch: +4dBu / -10dBV — compatible with both professional audio interfaces and consumer devices
• Front-panel volume control knob
• Magnetically shielded HF transducer — safe placement near magnetically sensitive equipment
• Slotted reflex port on the rear — can be placed close to walls with Boundary EQ engaged
• JBL 100-hour power stress test on every unit — reliability assurance built into the manufacturing process
• NAMM TEC Award winner
• Dimensions: 11.75" x 7.28" x 9.88". Weight: 11.46 lbs
• Includes power cord. Sold individually — most users purchase a matched pair

Great Fit For

• Home studio producers and bedroom mix engineers who want accurate, reference-quality monitoring without a professional studio budget
• Podcasters, content creators, and streamers who need reliable audio feedback for voice and music production
• Musicians tracking and arranging at a home setup who need monitors that translate accurately to headphones and other playback systems
• Video editors and post-production workers who need full-range audio monitoring for dialogue, music, and effects balancing
• Beginning engineers stepping up from consumer speakers or headphone-only monitoring who want a trusted, professional reference point
• Project studio owners running a desktop-adjacent setup where the Boundary EQ makes real acoustic compensation practical

Sound and Use

The 305P MkII is a monitor that rewards accurate judgment rather than flattering your mixes. Its frequency response is neutral and honest across the midrange — the range where most mixing decisions live — with a controlled low end that does not artificially inflate the bass of a recording the way consumer speakers do. The 49Hz lower limit on a 5" monitor is genuinely useful: it extends into the meaningful sub-bass territory for most music without requiring a subwoofer for the vast majority of monitoring tasks. The sweet spot created by the Image Control Waveguide is wide enough that a slightly off-center sitting position in a home studio does not collapse the stereo image, which is a significant practical advantage in rooms where symmetrical placement is not always achievable. The HF Trim switch is more useful than it might appear — small adjustments to the high-frequency balance can meaningfully change how detailed or fatiguing a monitor sounds in different rooms, and having that adjustment available without any external processing is genuinely convenient. Professional engineers who have compared the 305P MkII against monitors at two and three times its price consistently note that the sonic gap is narrower than the price difference suggests.
