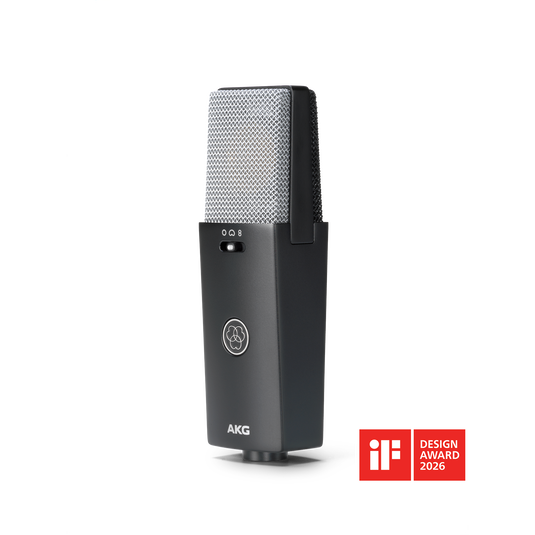

AKG C114 Large-Diaphragm Multi-Pattern Condenser Microphone
|
|
|
|
|
AKG C114 Large-Diaphragm Multi-Pattern Condenser Microphone
A 26mm gold-sputtered edge-terminated true condenser with three switchable polar patterns, 12dB(A) self-noise, 145dB max SPL, and a C414-inspired recycled-metal body — the most versatile microphone in AKG's new C-Series, and one of the most capable mics available at this price point.
About This Microphone
The AKG C114 is the flagship of AKG's freshly introduced C-Series — a ground-up condenser microphone designed by AKG's engineering team to bring the essential character of the C414 into a genuinely accessible price range. The distinction between the C114 and its sibling the C104 begins at the capsule: the C114 uses a 26mm dual-diaphragm, gold-sputtered, edge-terminated true condenser capsule inspired directly by the CK12 design that made AKG famous — the same capsule lineage that defines the C12 and C414. That is not marketing language; it is the actual capsule architecture. The result is a broad, balanced midrange, a smooth and extended high end with no harshness, and a full low end that professional reviewers have described as richly textured and correct. Three selectable polar patterns — cardioid, omnidirectional, and figure-8 — are switched via a front-panel control, giving the C114 a recording flexibility that most microphones at double this price cannot match. The included H84 shock mount provides real mechanical isolation from stand vibration and handling noise. The body is built from 100% recycled post-industrial metals. Any two C114 units can be considered a matched stereo pair given AKG's manufacturing consistency — meaning a second unit purchased later slots straight into stereo recording applications without additional matching expense.
Key Highlights
- 26mm dual-diaphragm gold-sputtered edge-terminated true condenser capsule — an AKG invention from the classic C12, delivering smooth highs and a balanced full-range response
- Three selectable polar patterns: Cardioid, Omnidirectional, and Figure-of-Eight — switchable via front-panel control
- Self-noise: 12dB(A) — a 2dB improvement over the C104, and outstanding performance at this price for capturing quiet sources
- Max SPL: 145dB (at 0.5% THD) — handles loud guitar amps, brass, drums, and percussion without perceptible distortion
- Signal-to-noise ratio: 82dB re 1 Pa — ultra-wide dynamic range from whispers to stage-volume sources
- Frequency response: 20Hz – 20kHz — full audio band coverage with no artificial peaks or roll-offs
- Sensitivity (cardioid): 13.5mV/Pa (-37.4 dBV)
- Transformerless FET circuit — fast transient response, low noise, no transformer coloration
- Electrical impedance: 200 ohms. Recommended load impedance: 1000 ohms or greater
- Requires 48V phantom power — current consumption 5mA or less
- Side-address design — front of microphone faces the sound source (AKG logo side)
- No switchable pad or high-pass filter — any external processing performed at interface or DAW level
- Body constructed from 100% recycled post-industrial metals and alloys — packaging and accessories fully recyclable
- C414-inspired visual design — virtually indistinguishable from AKG's flagship studio mic at a glance
- Manufacturing consistency allows any two C114 units to serve as a matched stereo pair
- Includes H84 shock mount — open-front design, screws directly into the base of the microphone
- Dimensions: 158 x 47 x 35mm. Weight: 415g (0.91 lbs)
The Edge-Terminated Capsule
Edge termination is an AKG invention that predates the C414 — it originated in the legendary C12 microphone and defines the acoustic character that AKG condensers are known for. Rather than center-terminating the diaphragm, edge termination produces a capsule with a smoother high-frequency response, less harshness at upper frequencies, and a tonal balance that professional engineers describe as natural and musical rather than edgy or hyped. The C114 brings this capsule architecture directly into the home studio.
Three Patterns, One Mic
The polar pattern switch on the C114 is not a feature addition — it is a fundamental expansion of what the microphone can do. Cardioid mode handles standard single-source tracking with good rear rejection. Omni opens the pickup to all directions for room recording, acoustic ambience, and conference applications. Figure-8 captures front and back while rejecting the sides — the essential pattern for Mid-Side stereo recording, Blumlein pairs, and facing two sources with one microphone. A single C114 handles all of these scenarios.
The AKG Sound at This Price
Professional reviewers who tested the C114 against AKG's C414 — a microphone that costs significantly more — consistently noted that the sonic gap between the two is narrower than the price difference would suggest. The broad, correct midrange, the smooth extended treble, and the firm low end are the same characteristics that earned the C414 its position as one of the most used microphones in professional studios worldwide. The C114 carries that tradition into a bracket that most home studios can afford without compromise.
Great Fit For
- Home studio vocalists who want the tonal character and capsule lineage of AKG's C-Series at an entry-level price
- Recording engineers who need one microphone that covers vocals, acoustic instruments, room recording, and stereo applications
- Podcasters, broadcasters, and streamers who want a multi-pattern condenser for interview setups, including face-to-face recording in figure-8
- Drummers and producers tracking overhead or room mic recordings who benefit from omni or cardioid room capture
- Musicians building a stereo pair — two C114 units can be purchased and matched without additional expense
- Producers who need a single microphone capable of Mid-Side stereo recording, Blumlein pair duties, or XY stereo configurations
- Anyone stepping up from a cardioid-only condenser who wants multi-pattern flexibility in a trusted brand
The Three Polar Patterns
Specifications
The C114 is one of those microphones that reviewers have been genuinely excited about — not just for the price, but for what it actually sounds like. The edge-terminated capsule design is the real thing, the multi-pattern flexibility is genuinely useful, and the shock mount in the box means you are set up and recording without needing anything extra. If you are building a home studio around a microphone you will not grow out of quickly, this is a strong place to start.
Questions about pairing it with an interface, how the three polar patterns work in practice, or whether to grab one or two for stereo work — we are always happy to dig into that with you. Give us a call or a text anytime.
Reach us at 814-371-5666 — Spotts Music Center, Dubois, PA. Helping you make music.
