(USED) Behringer Multicom Pro MDX4400 4-Channel Compressor Limiter Peak Limiter
|
|
|
|
|
|
|

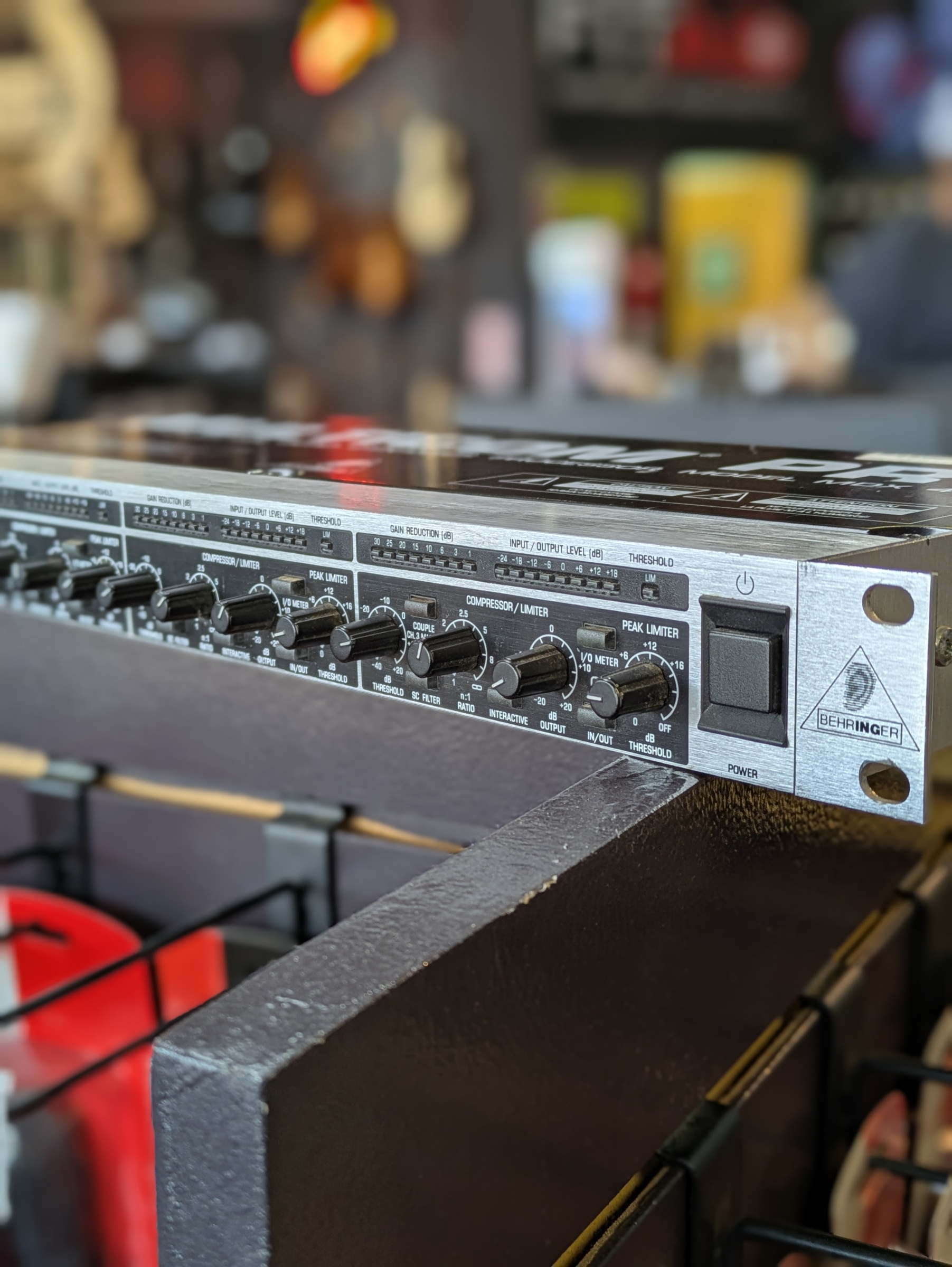

Behringer Multicom Pro MDX4400 4-Channel Compressor / Limiter / Peak Limiter
Four fully independent channels of IKA compression, IGC peak limiting, and switchable sidechain filtering in a single rack space — a practical and densely featured dynamics solution for live sound, studio, and installed system applications.
Who This Is For
Four channels of compression and limiting in 1U of rack space is a meaningful density for anyone managing dynamics in a live PA, a multi-channel recording setup, or a permanently installed sound system. The MDX4400 covers the practical territory well: each channel operates completely independently with its own threshold, ratio, attack, release, output, and bypass controls, and channels 1/2 and 3/4 can be stereo-coupled with a real sum of RMS output for transparent stereo bus compression. The IKA (Interactive Knee Adaptation) compression algorithm adapts its knee behavior to the signal, giving you the ability to dial in transparent, nearly inaudible compression for program material or push the ratio harder for more obvious dynamic control — switchable between IKA and conventional hard-knee modes. The switchable SC (sidechain) highpass filter keeps low-frequency content from dominating the compressor's response, which is particularly useful on mix bus compression where kick and bass would otherwise drive the gain reduction too aggressively. For a used unit at this density of features, the MDX4400 is a workhorse tool that covers a lot of practical ground without requiring multiple rack spaces.
Key Highlights
- 4 fully independent channels of IKA compression/limiting in a single 1U rack space
- IKA (Interactive Knee Adaptation) — combines hard-knee and soft-knee characteristics; switchable between IKA and hard-knee modes
- IGC (Interactive Gain Control) peak limiter per channel — combines clipper and program limiter circuits with adjustable threshold
- Switchable SC (sidechain) highpass filter per channel — limits low-frequency influence on compressor action
- Auto function for automatic attack and release envelope control
- Stereo Couple function — links channels 1/2 or 3/4 with true sum of RMS output for transparent stereo operation
- Hard bypass switch per channel for direct A/B comparison without channel switching artifacts
- Switchable operating level per channel: +4dBu (professional) or -10dBV (consumer)
- 8-segment LED metering per channel for gain reduction (1/3/6/10/15/20/25/30dB) and input/output level
- Peak limiter LED indicator per channel
- Servo-balanced XLR and 1/4" TRS inputs and outputs per channel
- Detent potentiometers for repeatable parameter settings
- NJM4580 op amps with high linearity and low distortion
- SMD (Surface Mounted Device) circuit construction for reliability and compact layout
Why You'll Love It
Features
IKA compression is the core advantage of the MDX4400's design — the knee adapts to the signal's behavior rather than applying a fixed transition point, which means the onset of gain reduction is smoother and more musical under a wide range of input material. The SC filter is a genuinely useful tool in mix contexts, preventing the compressor from reacting primarily to bass frequencies while letting midrange and treble content drive the gain reduction more naturally. The IGC peak limiter per channel adds a downstream protection stage that catches transient peaks the compressor doesn't catch in time.
Advantages
Four channels in 1U is the MDX4400's strongest practical argument. Two stereo-coupled pairs cover a full stereo main mix and a stereo bus simultaneously — or, decoupled, provide four independent channels for drum overheads, drum bus, vocals, and a direct instrument simultaneously. The hard bypass switch per channel makes real-time A/B comparison possible without touching gain staging, which is essential when setting compression levels on a live system where even a small level jump is immediately noticeable.
Benefits
The detent potentiometers are a build quality detail that pays off in practice — settings are repeatable and consistent across channels, which matters when you're trying to match compression behavior on a stereo pair. The switchable +4dBu/-10dBV operating level per channel means the MDX4400 integrates cleanly into both professional and semi-pro signal chains without requiring external level matching. At used pricing, this is a high-density dynamics processing solution that earns its rack space quickly.
Great Fit For
- Live sound engineers who need multiple channels of compression in a compact rack for FOH or monitor applications
- Houses of worship and installed venue systems managing consistent vocal and music dynamics across multiple inputs
- Home and project studio recordists who want four channels of compressor/limiter for tracking or mixing
- Touring operators building efficient, dense processing racks where rack space is at a premium
- Multi-way PA systems where individual frequency bands need limiting protection after an active crossover
- Broadcast and AV installations requiring consistent output level control across multiple audio channels
Sound and Use Case
The MDX4400 is fundamentally a transparent dynamics tool — it is not designed to impart heavy character the way a vintage optical or transformer-based compressor might. Its strength is control: keeping levels consistent, protecting downstream equipment from peaks, and managing the dynamic range of a signal in a way that is as inaudible as needed or as audible as you dial in. With IKA mode active, the compression onset is subtle and musical, making it well suited to stereo bus work where you want the mix to breathe naturally under light gain reduction. Switch to hard-knee mode and the behavior becomes more conventional and predictable, which works well for limiting applications where you want a clearly defined ceiling.
In live PA applications, the MDX4400 fits naturally between the console output and the power amplifiers, or inserted across individual aux sends feeding stage monitors. When used after an active crossover — as described in the unit's own documentation — it provides independent limiter protection for each frequency band in a multi-way speaker system, preventing tweeter damage from transient peaks without affecting the low or midrange path.
Since this is a used unit, reach out to confirm condition details before purchasing. Call or text us at 814-371-5666.
Specifications
Four channels of compression in a single rack unit is one of those things that sounds like it should cost more than it does — and when it's set up well, it changes how a system behaves in ways that are immediately audible. Vocals sit more consistently, instruments stay present without jumping out, and the mix holds together under dynamic performance conditions rather than constantly demanding fader adjustments. The MDX4400 has been doing that work in live rigs and studio racks for years, and at used pricing it's a practical, proven tool that earns its rack space from the first show.
Want to know more about the condition of this specific unit, or want to talk through how to integrate it into your system? Give us a call or a text at 814-371-5666 — we're always up for a good gear conversation.
